When you're picking out the right materials for electrical work, it’s really important to understand the different insulation options out there. One top-notch choice is Xlpe Cable Insulation — it’s well-known for its great thermal and electrical properties. If you’re looking for a reliable supplier, Zhengzhou Hesheng Cable Co., Ltd. is a name worth knowing. They've been in the game since 1998, mostly all about providing high-quality cable solutions. Plus, they've got the ISO9001 certification to back it up. Over the years, they’ve grown into a modern company with a pretty extensive range of products and the capacity to handle bigger projects. In this blog, I’m sharing five practical tips to help you pick the best XLPE cable insulation for your specific needs — so your projects stay reliable, efficient, and long-lasting.
Key Considerations for Selecting XLPE Cable Insulation in Electrical Applications
Whenever you're choosing XLPE cable insulation for electrical projects, there are a few key things you really want to keep in mind to make sure everything works smoothly and lasts a long time. For example, one of the big factors is how the insulation handles temperature—especially during tests like the Long Continuous Thermal Test (LCTT). The way XLPE reacts to changing temperatures can really impact its reliability, particularly in medium voltage setups where insulation wear and tear might lead to failures sooner than you'd like.
On top of that, the growing market for medium voltage wires and cables shows how much people are demanding dependable insulation solutions. Forecasts suggest that the market will grow from about USD 15.33 billion in 2025 to roughly USD 22.23 billion by 2034. This surge is mainly driven by the adoption of new cable tech, like DC-XLPE cables used in voltage sourced converter (VSC) HVDC systems. As these DC-XLPE cables become more common, understanding their insulation properties and performance metrics is super important for engineers and project planners alike, so they can make sure their systems meet both today’s needs and future ones too.
Advantages of XLPE Cable Insulation Over Traditional Materials
When you're picking out insulation for electrical cables, you'll probably notice that XLPE (that’s cross-linked polyethylene) has been getting quite a lot of love lately. Honestly, it’s understandable—it's got some serious advantages over the more traditional options like PVC and rubber. One of the biggest perks? Its ability to handle higher temperatures without breaking a sweat. That makes it perfect for those tough environments where stuff gets pretty hot or harsh. Plus, this means your cables last longer and your whole system stays more reliable.
Quick tip, though: always double-check the thermal rating of the XLPE insulation to make sure it's suitable for your specific project. It’s also great at electrical performance—low dielectric loss, high voltage breakdown—so it really minimizes energy loss, especially in high-voltage setups. Super important if you're trying to keep things efficient.
And when you’re choosing XLPE, think about the voltage requirements first. Oh, and unlike some older materials, XLPE is pretty resistant to moisture and chemicals, which is a huge bonus if you’re dealing with outdoor or industrial environments. This resistance helps prevent problems like tracking or corrosion, keeping everything running smoothly in the long run.
So, don’t forget to consider the environmental conditions and what chemicals it might be exposed to—that’s key because the durability of XLPE really makes a difference in how well your electrical system performs over time.
Understanding Voltage Rating and Its Impact on XLPE Cable Selection
When you're picking XLPE cable insulation for electrical stuff, knowing the voltage ratings is pretty important. Especially for high-voltage direct current (HVDC) systems, you need insulation that can handle the job safely and efficiently. I came across a recent industry report that mentioned XLPE cables can handle voltages up to around 150 kV, which makes them perfect for HVDC transmission. One of the main reasons they’re so popular in this field is because polyolefin compounds, like XLPE, can keep their electrical properties even under really high voltage conditions.
Polyolefin materials, including XLPE, are super reliable when it comes to dielectric strength—a fancy way of saying they’re great at preventing electrical breakdowns in high-voltage environments. In fact, some studies show that the breakdown voltage for polyolefin-insulated cables is way higher than older materials, with some tested cables surpassing 200 kV when made properly. This isn’t just about better performance; it also means fewer maintenance issues down the line, which is a big plus for utility companies. As more folks are looking for more efficient ways to transmit power, choosing the right insulation options seriously becomes a key part of making HVDC projects work smoothly.
Evaluating Environmental Factors for Optimal XLPE Cable Performance
When we're looking at what affects the performance of XLPE cables, especially in different environments, it's really important to understand how various surroundings can impact their insulation lifespan. Recent research shows that exposure to damp, acidic, or alkaline conditions can really mess with the material's physical and electrical properties. For example, tests that mimic real-life conditions reveal that staying in humid environments like these can speed up aging and weaken the dielectric strength — in fact, their lifespan might drop by as much as 30% compared to neutral conditions.
On another note, when designing medium voltage underground systems, you’ve gotta think about heat and also follow industry standards about how many XLPE cables you can pack into a trench. Turns out, some of the existing standards don’t really account for the heat generated when multiple cables are bundled together, which can make things worse thermally and impact how well the cables perform. The good news is, with better modeling and placement strategies, you can improve cooling and overall performance, pushing past some of the previous limits. Basically, paying attention to these environmental factors and smart design choices helps ensure that the XLPE cables you pick will hold up well in the long run and meet the tough demands of today’s electrical systems.
5 Best Practices for Choosing XLPE Cable Insulation for Your Electrical Needs
| Practice | Description | Environmental Factor | Impact on XLPE Performance |
| Temperature Tolerance | Select cables that can withstand the highest temperatures of the environment. | High Thermal Ranges | Prevents insulation breakdown and increases lifespan. |
| Moisture Resistance | Choose XLPE cables with added moisture barriers. | High Humidity Conditions | Reduces risk of short circuits and other failures. |
| Chemical Resistance | Evaluate exposure to chemicals and corrosive substances. | Industrial Settings | Ensures operational integrity and safety. |
| UV Stability | Select cables specifically designed for outdoor use. | Direct Sunlight Exposure | Prevents degradation from UV radiation. |
| Fire Resistance | Ensure compliance with fire safety regulations. | High Fire Risk Areas | Minimizes fire hazards and improves safety. |
The Role of Temperature Resistance in XLPE Cable Insulation Choices
When you're choosing XLPE (cross-linked polyethylene) for cable insulation, one of the biggest things to consider is how well it handles heat. Unlike your typical materials, XLPE has really great thermal stability, so it's perfect for use in hotter environments. This not only helps the cables perform better but also cuts down on the chance of the insulation failing — which is super important if you want your power systems to stay reliable. It’s a good idea to know the specific temperature range where your cables will be working so you can make smarter choices that match what you need.
Thanks to new advances in material science, XLPE insulation keeps getting better, supporting more demanding setups like smart grids. Ongoing research into how XLPE cables hold up over time—looking at their mechanical, chemical, and electrical properties—is helping us make these cables last longer and work more efficiently. With the market for these cables expected to grow a lot by 2032, companies like Zhengzhou Hesheng Cable Co., Ltd. are stepping up to lead the way, offering top-notch insulated cables that meet modern safety and performance standards.
Cost vs. Performance: Balancing Your Budget with XLPE Quality
When you're choosing XLPE cable insulation, one of the biggest things to think about is finding that sweet spot between cost and performance. XLPE, or cross-linked polyethylene, is pretty well-known for its top-notch thermal, electrical, and mechanical qualities. That's why it’s such a go-to choice for all kinds of electrical setups. But here’s the thing — with so many options out there, it’s important to figure out how much you’re actually willing to spend without sacrificing quality. Getting a clear understanding of what your project needs can really help you make smarter decisions, making sure your budget lines up with the performance you’re after.
Yeah, those cheaper XLPE cables might look tempting at first glance. But most of the time, they come with some compromises. Lower-cost options might not be as durable or safe when it comes to electrical performance, which could end up costing you more in the long run — think repairs or early replacements. On the flip side, spending a bit more on higher-quality XLPE insulation usually pays off through better efficiency, less maintenance hassle, and a longer lifespan for your cables. So, it’s really about weighing what features matter most for your project and seeing how they fit with your budget. Finding that right balance is key to making sure you get what you need without breaking the bank.
Cost vs. Performance of XLPE Cable Insulation Options

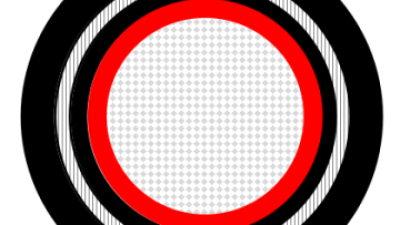

The Essential Guide to IEC60502-1 0.6/1kv Single Core XLPE Insulated Electrical Cable: Applications, Benefits, and Selection Tips
The IEC60502-1 0.6/1kV single core XLPE insulated electrical cable stands out as an essential component in low-voltage power distribution. This guide delves into its applications, benefits, and tips for selection, catering to both professionals and enthusiasts in the electrical engineering field. With a rated voltage below 1000V, this cable is optimized for a variety of uses in residential, commercial, and industrial environments, making it a versatile choice for reliable electrical energy transmission.
One of the key advantages of Xlpe Insulated Cables is their excellent thermal and electrical properties. The cross-linked polyethylene (XLPE) insulation provides superior resistance to heat and environmental factors, enhancing the longevity and safety of the power distribution system. Furthermore, these cables are designed to meet international standards, which ensures their performance and reliability in diverse applications, such as in building internal power distributions and factory production lines.
When selecting the appropriate cable for your specific application, consider factors such as the operating environment, load requirements, and regulatory compliance. Paying close attention to these details will ensure optimal performance of low-voltage systems. Ultimately, the IEC60502-1 0.6/1kV single core XLPE insulated electrical cable proves itself as a crucial element within modern power systems, balancing efficiency, safety, and adaptability.
FAQS
: A primary factor is the temperature profile of the insulation material, especially during applications like the Long Continuous Thermal Test (LCTT).
The dynamic thermal behavior of XLPE significantly influences its reliability in medium voltage environments, where insulation fatigue can lead to premature failures.
The market size is projected to expand from USD 15.33 billion in 2025 to USD 22.23 billion by 2034.
The rising adoption of advanced cable technologies, such as DC-XLPE cables in voltage sourced converter (VSC)-based HVDC systems, is driving the demand.
Environmental factors, such as exposure to acidic or alkaline damp environments, can significantly impact the physicochemical and electrical properties of cable insulation materials, potentially reducing lifespan.
Constant exposure to humid conditions can lead to accelerated aging and a decrease in dielectric strength, potentially reducing the insulation lifespan by up to 30% compared to neutral conditions.
Effective thermal management is important because industry standards may not adequately account for heat generated by multiple cables, which can adversely affect cable performance.
Optimizing cable placement and ensuring adequate thermal management can enhance performance and reliability in underground circuits.
Electrical engineers must understand the insulation properties and performance metrics of XLPE to ensure they meet current and future electrical needs efficiently.
Addressing environmental and design factors is essential in ensuring that the chosen XLPE cables can meet the demanding requirements of modern electrical systems.
Conclusion
When you're choosing XLPE cable insulation for your electrical projects, there are a few things you really want to keep in mind because they can make a big difference in how well your system performs and how reliable it turns out to be. First off, it’s helpful to understand why XLPE is a pretty popular choice—compared to older materials, it offers better thermal and electrical properties, which can come in handy. Voltage rating is also super important here; it affects both safety and how well everything functions. Don’t forget to think about the environment too—things like moisture, chemicals, and UV exposure can really impact how long your cables last, especially in different settings.
Plus, temperature resistance is a big deal — this tells you if the cable can handle extreme temperatures without losing safety or efficiency. And of course, you want to find a good balance between costs and performance. Spending a bit more upfront on high-quality XLPE insulation usually pays off in the long run, since it means less maintenance and fewer replacements down the line. At Zhengzhou Hesheng Cable Co., Ltd., we’re all about providing top-notch XLPE cable solutions that stand up to the tough demands of today’s electrical projects.
