Picking the right Three Phase Armoured Cable is pretty important if you want your project to go smoothly. These cables are built to give better protection against knocks and other mechanical damage — which is a big deal, especially in industrial settings. Honestly, understanding exactly what you need can save you a lot of headaches down the line. Different environments have their own quirks, so not every cable will do the job equally well.
When you’re shopping around, you’ll notice there are tons of options. It can get confusing because each type serves a different purpose. For example, some cables are perfect for outdoor use, resisting weather and corrosion, while others are geared more towards indoor applications. Picking the wrong one might end up costing you more in repairs or inefficiency later on.
So, before making a decision about a Three Phase Armoured Cable, ask yourself a few key questions. What's the environment like where you'll install it? What kind of load do you expect it to handle? Are there any hazards — like moisture or physical damage? Thinking these things through helps narrow down your choices. And if you're still unsure, chatting with some industry pros can be a game-changer. They've been around the block and can offer insights you might not think of. The bottom line — making a well-informed choice means better reliability and safer operation in the long run.
Understanding the Basics of Three Phase Armoured Cables
Understanding the basics of three-phase armoured cables is crucial for anyone involved in electrical installations. These cables are designed for high power applications, transmitting three-phase power efficiently. According to industry standards, the typical operating voltage range for three-phase cables is between 400V to 33kV. This makes them suitable for both commercial and industrial use.
Armouring provides mechanical protection. It safeguards the cables from physical damage, moisture, and chemical exposure. Typically, steel wire or an aluminum layer is used for this purpose. However, not all armoured cables are created equal. Some may fail to provide adequate protection under extreme conditions.
Conductors in a three-phase cable can be made from copper or aluminum, each with its benefits. Copper is more conductive but also more expensive. Aluminum is lighter and often the material of choice for larger installations. It's important to consider the specific needs of your project when selecting a cable type. An improperly chosen cable can lead to inefficiencies and potential safety risks, emphasizing the need for thorough research and consultation before making a final decision.
Key Specifications and Standards for Three Phase Armoured Cables
Choosing the right three phase armoured cable requires understanding key specifications and standards. These cables are used in various industrial applications, providing electrical power safely and efficiently. Industry reports show that proper insulation is crucial. For instance, polyvinyl chloride (PVC) and cross-linked polyethylene (XLPE) are commonly used materials, each offering specific thermal and mechanical properties.
Current-carrying capacity is another vital specification. It directly influences the cable’s performance. Data indicates that a standard Three Phase Power Cable can handle significant loads, but the installation environment affects its efficiency. For example, cables installed in high-temperature settings often require derating to prevent overheating. The construction quality also matters. Armoured cables protect against physical damage, but the type of armour—steel or aluminum—affects flexibility and weight.
Being aware of compliance standards is essential. The International Electrotechnical Commission (IEC) and the British Standards Institution (BSI) have established guidelines. These standards assist in assessing performance and safety. Yet, some users overlook these details, potentially compromising safety. It highlights the importance of carefully evaluating all specifications before selection. Making an informed decision ensures durability and reliability in demanding conditions.
Factors Influencing Cable Selection: Voltage, Amperage, and Environment
Selecting the right three-phase armoured cable is crucial. Factors such as voltage, amperage, and environmental conditions play a significant role in this decision-making process.
Voltage is the first consideration. Ensure the cable can handle the necessary voltage level for your application. Underestimating voltage can lead to serious failures.
Next, consider the amperage. This is the amount of current the cable must carry. If the amperage exceeds the cable's rating, overheating and damage may occur. It's essential to calculate your needs accurately. Inadequate amperage ratings can result in potential hazards. You might overlook these aspects, leading to costly repairs or safety issues.
Lastly, the environment influences cable selection significantly. Environmental factors include temperature, exposure to moisture, and potential chemical contact. For instance, outdoor cables must withstand moisture and UV exposure. An unsuitable choice can degrade performance over time. It's wise to evaluate your environment closely. Remember, even minor oversights in selecting cables can lead to unforeseen challenges in the future.
Comparing Different Types of Armoured Cables: SWA vs. AWA
When it comes to three phase armoured cables, opting for the right type is critical. Two common variants are SWA (Steel Wire Armoured) and AWA (Aluminum Wire Armoured). Both have distinct features. SWA cables offer superior strength due to the steel, making them ideal for heavy-duty applications. They provide excellent protection against mechanical damage. In contrast, AWA cables are lighter and can be more flexible, suitable for installations requiring easier handling.
SWA cables are often used in industrial settings. They can withstand harsh environments, whether underground or above ground. The aluminum variant, while less robust, presents advantages in certain contexts. AWA cables are resistant to corrosion, making them fit for use in moist or chemically aggressive areas. However, users should consider the trade-offs. AWA may not handle extreme physical stress like SWA does.
Selecting the right armoured cable involves understanding project specifics. Factors like location, load requirements, and environmental conditions play a role. It can be tricky navigating the choices. Think about the installation process as well. Three Phase Underground Cable installations require planning. Each type has merits and drawbacks. It’s crucial to assess unique needs carefully before making a decision.
Calculating Load Requirements for Accurate Cable Sizing
When selecting a three-phase armoured cable, calculating the load requirements is crucial. Proper sizing ensures efficiency and safety. According to the Energy Networks Association, under-sizing cables can lead to overheating and potential damage. It's essential to determine the maximum load in amperes that the cable must carry. This can be done through existing data from similar installations or by consulting a professional.
You should consider the type of load—resistive, inductive, or capacitive. Each type affects the cable's performance differently. For instance, motors require a larger starter current than their running current. As reported by the International Electrotechnical Commission, factoring in these variations can lead to more accurate sizing. Mistakes here can result in loss of power, increased operational costs, and even hazards.
Also, the installation environment must be factored in. Factors like temperature, humidity, and chemical exposure can degrade cable materials over time. According to industry studies, up to 25% of cable failures are due to environmental conditions. Regular assessments of load and installation conditions can help maintain the integrity of the electrical system. Addressing these factors is critical for reliable and safe operations.
How to Choose the Right Three Phase Armoured Cable for Your Needs? - Calculating Load Requirements for Accurate Cable Sizing
| Cable Type | Conductor Material | Number of Phases | Cross-sectional Area (mm²) | Maximum Load (A) | Recommended Applications |
| Armoured Cable Type A | Copper | 3 | 5 | 40 | Industrial Machinery |
| Armoured Cable Type B | Aluminum | 3 | 10 | 80 | Construction Sites |
| Armoured Cable Type C | Copper | 3 | 16 | 100 | Datacenters |
| Armoured Cable Type D | Copper | 3 | 25 | 125 | Heavy Equipment |
Installation Best Practices for Three Phase Armoured Cables
When installing three phase armoured cables, there are essential practices to follow. Ensure the installation area is clean and free from debris. This helps reduce the risk of damage during the installation process. These cables should be positioned correctly to avoid sharp bends. Such bends can lead to cable failure over time.
Using the right tools is critical for a successful installation. A cable cutter and stripping tool are essential for preparing the wire. For larger installations, consider using a fish tape to guide the cable through conduits. Properly connecting the Three Phase Wire to the distribution panel ensures a reliable power supply. Check all connections for tightness to prevent future issues.
Documentation is vital, yet often overlooked. Record details such as the cable type and installation date. While it may seem tedious, this information can be invaluable for future maintenance. Remember that even experienced installers can make mistakes. Regular audits of the installation can identify potential risks and improve safety.
Maintenance and Safety Considerations in Cable Management
When managing three-phase armoured cables, maintenance and safety are paramount. Regular inspections can help identify potential issues, such as wear and tear. Look for any signs of insulation damage. This can indicate underlying problems that need immediate attention. A worn cable can lead to costly equipment failure.
In terms of safety, proper installation is crucial. Ensure cables are adequately supported to avoid stress on connections. Use protective conduits when necessary. This minimizes the risk of physical damage. It's important to educate personnel about handling cables safely. They should know the right techniques for installation and removal.
There are challenges to consider. Not every installation meets the ideal conditions. Sometimes cables experience environmental factors like heat or moisture. Regular maintenance checks are necessary to adapt to these conditions. Consistent monitoring can prevent unexpected outages or hazards. This process requires diligence and a proactive approach to cable management.

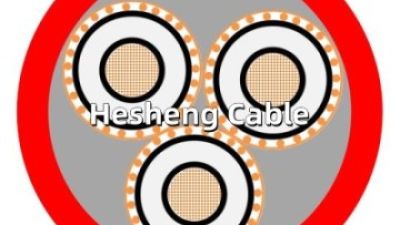

Enhancing Electrical Safety and Efficiency: A Comprehensive Analysis of ICEA Standard Three Cores EPR Insulated Cables MV105 in Power Distribution Networks
In today's power distribution networks, ensuring electrical safety and efficiency is paramount. The ICEA Standard Three Cores EPR Insulated Cables MV105 serve as a reliable solution for distributing electrical power at voltages ranging from 5KV to 46KV, operating smoothly at a frequency of 50Hz. These cables are designed to handle the demanding environments typical in industrial and commercial settings, combining robust construction with advanced insulation technology to minimize the risk of electrical mishaps.
Constructed from either copper or aluminum wires, these three-core cables feature a sophisticated triple-layer insulating system that enhances their performance and durability. The various metallic shield designs—such as copper tape, copper wire, concentric neutral, corrugated copper tape, and metal sheath—provide exceptional protection against electromagnetic interference and mechanical damage. This versatility not only improves operational efficiency but also extends the life of the cable, making it an ideal choice for a wide range of applications in power distribution networks. By adopting these cables, utilities and industries can ensure a safer and more effective electrical infrastructure, ultimately contributing to enhanced system reliability and operational excellence.
FAQS
: Voltage, amperage, and environmental conditions significantly influence your cable selection.
The cable must handle the necessary voltage level. Underestimating voltage risks serious failures.
Amperage is the current the cable must carry. Exceeding its rating can cause overheating and damage.
Factors like temperature, moisture, and chemical exposure impact performance and longevity of cables.
Keep the installation area clean and avoid sharp bends to reduce damage risk during installation.
A cable cutter and stripping tool are essential. Fish tape may help guide larger installations.
Recording details like cable type and installation date aids in future maintenance and safety assessments.
Ensure all connections are tight to prevent potential issues later on.
Audits can identify risks and improve safety. Mistakes can happen even with experienced installers.
Yes, overlooking environmental factors or failing to document installation details often leads to issues later.
Conclusion
When selecting a Three Phase Armoured Cable, it is essential to grasp the fundamental principles and specifications that govern these components. Key factors include voltage requirements, amperage ratings, and environmental conditions that influence cable selection. Understanding differences between types of armoured cables, such as SWA (Steel Wired Armoured) and AWA (Aluminium Wired Armoured), helps in making informed choices based on specific applications.
Accurate load calculations are crucial for sizing the cable correctly, ensuring optimal performance and safety. Best practices during installation, along with regular maintenance considerations, further enhance the longevity and reliability of Three Phase Armoured Cables in various settings. By adhering to these guidelines, one can ensure a suitable and efficient choice tailored to their electrical needs.
