H05VVH6-F/H07VVH6-F Elevator Cable, Lift Cable
Application of H05VVH6-F cable
The H05VVH6-F cable is suitable for use in both internal and panoramic elevator applications, with a freely suspended length of up to 45 metres, and a voltage rating of 300/500V. The cables have been designed for both internal and external applications in ambient temperatures ranging from -20°C to +70°C. Notable applications within the industry include the use of these cables in airport travellators.
The elevator platform cable, manufactured in accordance with the European harmonised standard H05VVH6-F, may also be utilised in cable management festoon systems, facilitating the transmission of power and control signals to overhead cranes and other mobile machinery.

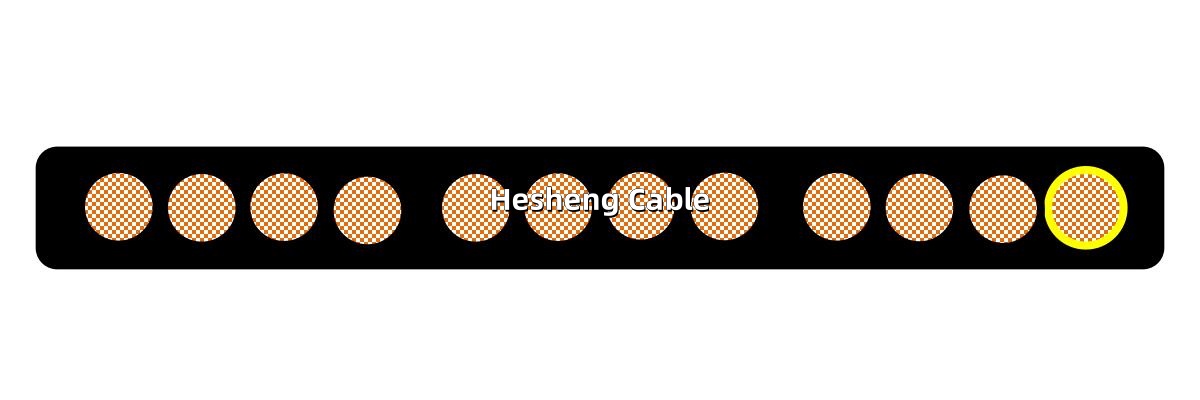

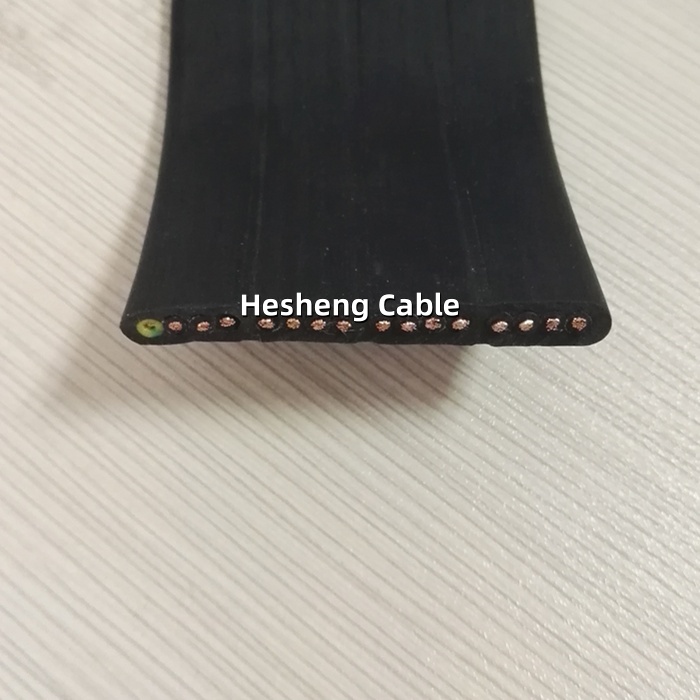

Additionally, a 450/750V flat cable, bearing the harmonised designation H07VVH6-F, is available upon request. Cables designated H07VVH6-F are available with cores of a cross-sectional area of 1.5mm² or greater.

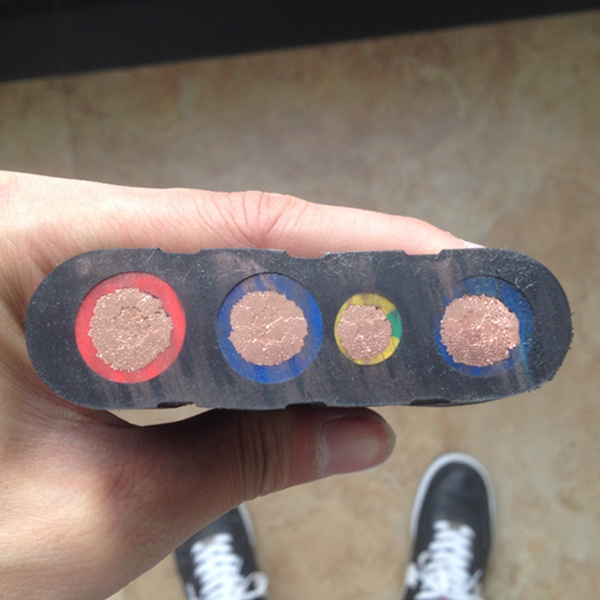

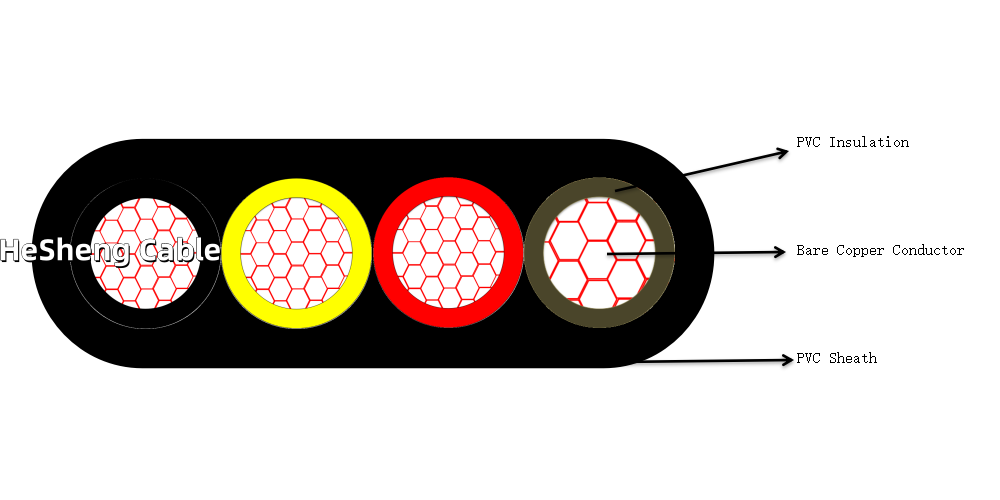

Contruction of H05VVH6-F Elevator Cable
| Construction | |
|
Conductor:Class 5 Flexible Stranded Copper Insulation: PVC (Polyvinyl Chloride) Out Sheath:PVC (Polyvinyl Chloride) Test Voltage Class:300/500V Core Identification |
 |
| Standard: | |
| BS EN 50214 DIN VDE 0281 part 404 IEC 60332-1 CSA C22.2 N° 49 UL 62 |
Temperature Rating Flexed: -20°C to +70°C Minimum Bending Radius Flexed: 8 x overall diameter |
Parameters of lift cable
| AWG | CORES X NOMINAL CROSS SECTIONAL | CONDUCTOR DIAMETER | NOMINAL THICKNESS OF INSULATION | NOMINAL OVERALL DIAMETER | NOMINAL COPPER WEIGHT | NOMINAL WEIGHT |
| mm2 | MM | MM | MM | KG/KM | KG/KM | |
| H05VVH6-F | ||||||
| 18(24/32) | 4 x 0.75 | 1.2 | 0.6 | 4.2 x 12.6 | 30 | 92 |
| 18(24/32) | 8x 0.75 | 1.2 | 0.6 | 4.2 x 23.2 | 59 | 177 |
| 18(24/32) | 12x 0.75 | 1.2 | 0.6 | 4.2 x 33.8 | 87 | 262 |
| 18(24/32) | 18x 0.75 | 1.2 | 0.6 | 4.2 x 50.2 | 131 | 382 |
| 18(24/32) | 24x 0.75 | 1.2 | 0.6 | 4.2 x 65.6 | 173 | 492 |
| 17(32/32) | 4 x 1.00 | 1.4 | 0.7 | 4.4 x 13.4 | 39 | 107 |
| 17(32/32) | 5x1.00 | 1.4 | 0.7 | 4.4 x 15.5 | 49 | 122 |
| 17(32/32) | 8 x 1.00 | 1.4 | 0.7 | 4.4 x 24.8 | 78 | 207 |
| 17(32/32) | 12x 1.00 | 1.4 | 0.7 | 4.4 x 36.2 | 116 | 302 |
| 17(32/32) | 18x 1.00 | 1.4 | 0.7 | 4.4 x 53.8 | 209 | 452 |
| 17(32/32) | 24x 1.00 | 1.4 | 0.7 | 4.4 x 70.4 | 231 | 592 |
| H07VVH6-F | ||||||
| 16(30/30) | 4 x1.5 | 1.5 | 0.8 | 5.1 x 14.8 | 131 | 60 |
| 16(30/30) | 5 x1.5 | 1.5 | 0.8 | 5.1 x 17.7 | 159 | 74 |
| 16(30/30) | 7 x1.5 | 1.5 | 0.8 | 5.1 x 25.2 | 224 | 103 |
| 16(30/30) | 8 x1.5 | 1.5 | 0.8 | 5.1 x 27.3 | 246 | 117 |
| 16(30/30) | 10 x1.5 | 1.5 | 0.8 | 5.1 x 33.9 | 305 | 146 |
| 16(30/30) | 12 x1.5 | 1.5 | 0.8 | 5.1 x 40.5 | 366 | 175 |
| 16(30/30) | 18 x1.5 | 1.5 | 0.8 | 6.1 x 61.4 | 629 | 261 |
| 16(30/30) | 24 x1.5 | 1.5 | 0.8 | 5.1 x 83.0 | 821 | 348 |
| 14(50/30) | 4 x2.5 | 1.9 | 0.8 | 5.8 x 18.1 | 193 | 98 |
| 14(50/30) | 5 x2.5 | 1.9 | 0.8 | 5.8 x 21.6 | 249 | 122 |
| 14(50/30) | 7 x2.5 | 1.9 | 0.8 | 5.8 x 31.7 | 337 | 170 |
| 14(50/30) | 8 x2.5 | 1.9 | 0.8 | 5.8 x 33.7 | 369 | 194 |
| 14(50/30) | 10 x2.5 | 1.9 | 0.8 | 5.8 x 42.6 | 516 | 242 |
| 14(50/30) | 12 x2.5 | 1.9 | 0.8 | 5.8 x 49.5 | 546 | 290 |
| 14(50/30) | 24 x2.5 | 1.9 | 0.8 | 5.8 x 102.0 | 1221 | 482 |
| 12(56/28) | 4 x4 | 2.5 | 0.8 | 6.7 x 20.1 | 155 | 273 |
| 12(56/28) | 5 x4 | 2.5 | 0.8 | 6.9 x 26.0 | 193 | 282 |
| 12(56/28) | 7 x4 | 2.5 | 0.8 | 6.7 x 35.5 | 270 | 477 |
| 10(84/28) | 4 x6 | 3 | 0.8 | 7.2 x 22.4 | 231 | 361 |
| 10(84/28) | 5 x6 | 3 | 0.8 | 7.4 x 31.0 | 289 | 532 |
| 10(84/28) | 7 x6 | 3 | 0.8 | 7.4 x 43.0 | 404 | 752 |
| 8(80/26) | 4 x10 | 4 | 1 | 9.2 x 28.7 | 385 | 709 |
| 8(80/26) | 5 x10 | 4 | 1 | 11.0 x 37.5 | 481 | 1122 |
| 6(128/26) | 4 x16 | 5.6 | 1 | 11.1 x 35.1 | 615 | 840 |
| 6(128/26) | 5 x16 | 5.6 | 1 | 11.2 x 43.5 | 769 | 1182 |
how to properly use lift cables
lift cables play a crucial role in the operation of elevators and lifting systems, ensuring safe and efficient vertical movement of people and goods. to utilize lift cables effectively, it’s important to follow some essential guidelines. first, always inspect the lift cables for any signs of wear or damage before use; frayed or corroded cables can pose serious safety risks. make sure the cables are properly tensioned to avoid slack, which can lead to malfunction. it is also essential to adhere to the manufacturer’s specifications regarding load limits and operational practices. regular maintenance and professional inspections can help prolong the lifespan of lift cables and ensure they function safely. by following these steps, you can enhance the reliability and safety of your lift systems.
